Description

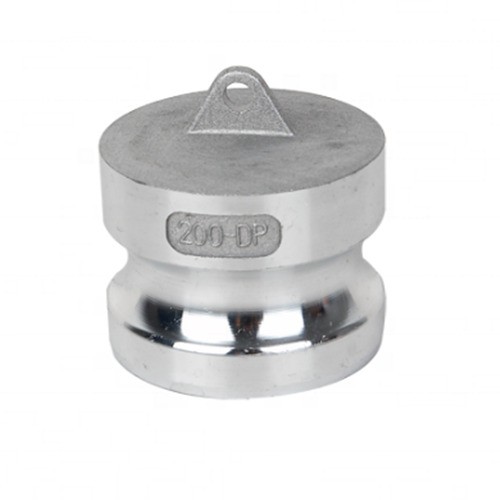

Camlock DC DP Cam & Groove Quick Dust Cap Plug
Cam and Groove couplings, also referred to as Camlocks, Kamlocks, & Quick Disconnects, are one of the most widely-used
form of industrial connector in the field today. Most commonly, they are found in water suction & discharge applications,
as well as petroleum products, dry material, food and beverage, and chemical applications. Sizes range from ½, to 12,
and are available in a variety of materials. we offer them in brass, stainless, aluminum, polypropylene, and nylon glass .
1. Standard
Our Camlock Coupling are made to standard of A-A-59326
( superseding MIL-C-27487 )or DIN2828
2. Technic
Forge & Casting
3. Size
From 1/2" to 12"inches
4. Type
Types available: A, B, C, D, DC, DP, E, F
Part A Male x female NPT&BSP
Part B Female x male NPT&BSP
Part C Female x hose barb
Part D Female x female NPT&BSP
Part E Male x hose barb
Part F Male x male NPT&BSP
Part DC Dust cap
Part DP Dust plug
5. Body material
Stainless steel(SS) 316 or 304, Aluminum, Brass, Polypropylene(PP), Nylon(NY)
6. Cam levers
We use stainless steel cam levers or brass cam levers.
7. Pins, Rings and Safety clips
We use steel plated pins, steel plated rings and Safety clips.
(Note: Safety clips are only available when required by the client, the client have to pay additional if need safety clips)
8. Sealings
NBR
EPDM
Viton
PTFE envelop gasket
Other materials are available on request.
9. Threads
NPT
BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)
10.
|
Model |
Size |
Thread |
Weight(Stainless Steel) |
Weight(Aluminum) |
Weight(Brass) |
Weight(PP) |
|
WO-DC050 |
1/2'' |
- |
0.13 |
0.05 |
0.12 |
0.07 |
|
WO-DC075 |
3/4'' |
-
|
0.18 |
0.10 |
0.13 |
0.07 |
|
WO-DC100 |
1'' |
- |
0.25 |
0.14 |
0.27 |
0.10 |
|
WO-DC125 |
1 1/4'' |
- |
0.43 |
0.24 |
0.41 |
0.20 |
|
WO-DC150 |
1 1/2'' |
- |
0.51 |
0.27 |
0.48 |
0.22 |
|
WO-DC200 |
2'' |
- |
0.76 |
0.33 |
0.60 |
0.24 |
|
WO-DC250 |
2 1/2'' |
- |
0.84 |
0.41 |
0.77 |
- |
|
WO-DC300 |
3'' |
- |
1.01 |
0.65 |
1.20 |
0.43 |
|
WO-DC400 |
4'' |
- |
1.73 |
0.92 |
1.87 |
0.67 |
|
WO-DC500 |
5'' |
- |
2.74 |
1.16 |
2.10 |
- |
|
WO-DC600 |
6'' |
- |
4.28 |
1.78 |
3.72 |
- |
|
WO-DC800 |
8'' |
- |
- |
4.20 |
- |
- |
11.
