Description

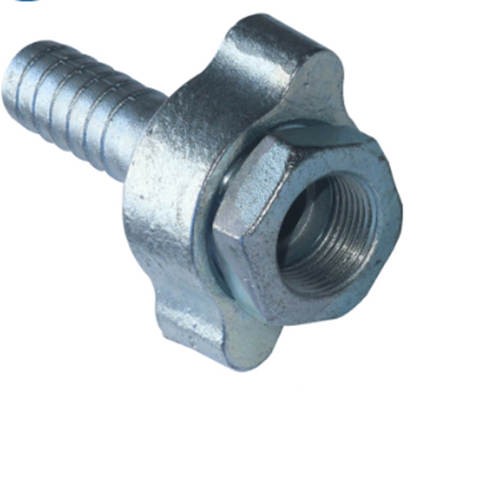

Ground Joint Coupling Boss Coupling Female Hose End
Ground Joint Coupling Boss Coupling Female Hose End is widely used in the high pressure steam operation .

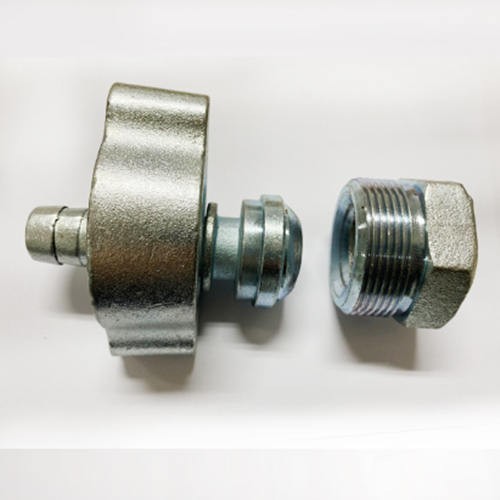

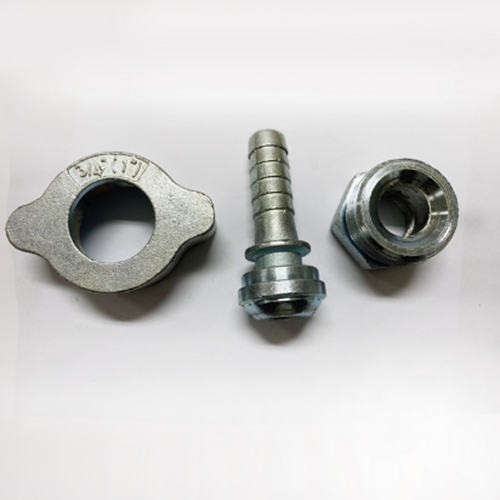

it is also uesd water oil air .it contains hose stem ,wing nut ,female spud.
The connection way :
option-1 , female hose end +male stem
option-2 , female hose end +male spud+female hose end
our available material are zinc plated steel or malleable iron . the size is 1/2",3/4",1",1-1/2",2",2-1/2",3",4" .
NAME
SIZE
WEIGHT
MATERIAL
WO-GJFH-13
1/2''
0.570
CS
WO-GJFH-20
3/4''
0.925
CS
WO-GJFH-25
1.0''
0.975
CS
WO-GJFH-32
1-1/4''
1.750
CS
WO-GJFH-38
1-1/2''
1.850
CS
WO-GJFH-50
2.0''
3.000
CS
WO-GJFH-65
2-1/2''
CS
WO-GJFH-75
3''
CS
WO-GJFH-100
4''
CS
