Description

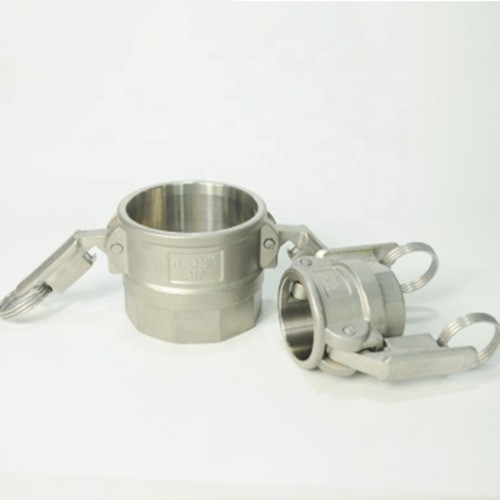

Autolock Camlock B C D DC Cam & Groove Self locking Coupling
Auto lock camlock coupling is also called self-locking coupler , who is handling with the dangerous and expensive liquid to
avoid the accidentally release , we modified the arm lever , so it locked by spring inside.
1. Standard
Our Camlock Coupling are made to standard of A-A-59326
( superseding MIL-C-27487 )or DIN2828
2. Size
From 1/2" to 6"inches
3. Type
Types available: B, C, D, DC,
Part B Female x male NPT&BSP
Part C Female x hose barb
Part D Female x female NPT&BSP
Part DC Dust cap
4. Body material
Stainless steel(SS) 316 or 304,
5.
SS316
| Item | Size | B weight | C weight | D weight | DC weight |
| 1 | 1/2'' | - | - | - | - |
| 2 | 1'' | 0.236 | 0.269 | 0.250 | 0.195 |
| 3 | 1 1/4'' | 0.380 | 0.389 | 0.370 | 0.312 |
| 4 | 1 1/2'' | 0.421 | 0432 | 0.448 | 0.354 |
| 5 | 2'' | 0.601 | 0.610 | 0.650 | 0.488 |
| 6 | 2 1/2'' | 0.759 | 0.982 | 0.762 | 0.580 |
| 7 | 3'' | 1.170 | 1.320 | 1.057 | 0.868 |
| 8 | 4'' | 1.630 | 1.900 | 1.640 | 1.280 |
